Tunnel Excavation
newsimg Type: Recent Projects

Client: San Francisco, CA

Services: Excavation of Tunnel for Plumbing Repairs

TUNNEL EXCAVATION - SAN FRANCISCO, CA

ESR was approached to excavate an underground tunnel to allow a condominium complex to make plumbing repairs.  The job involved creating access through the underground garage slab floor at 12 locations.  The tunnels were excavated by hand.  In addition, we installed ventilation, lighting and a dewatering system.  The sides were shored to allow the tunnels to remain in place for future maintenance.  Once the plumbing repairs were complete, the access holes were sealed with concrete.

Job Duration - 4 Months (including time for plumbing repair)

Click to View Photos

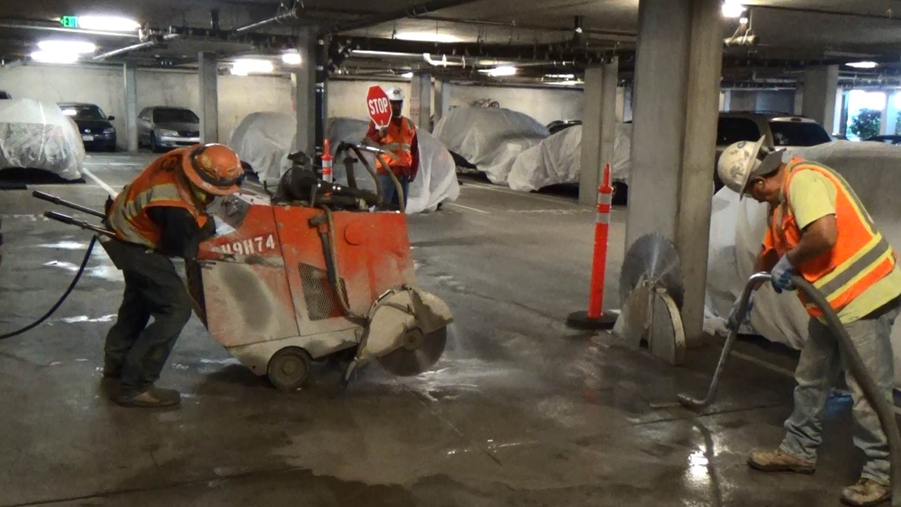

Cutting through the slab floor in the underground

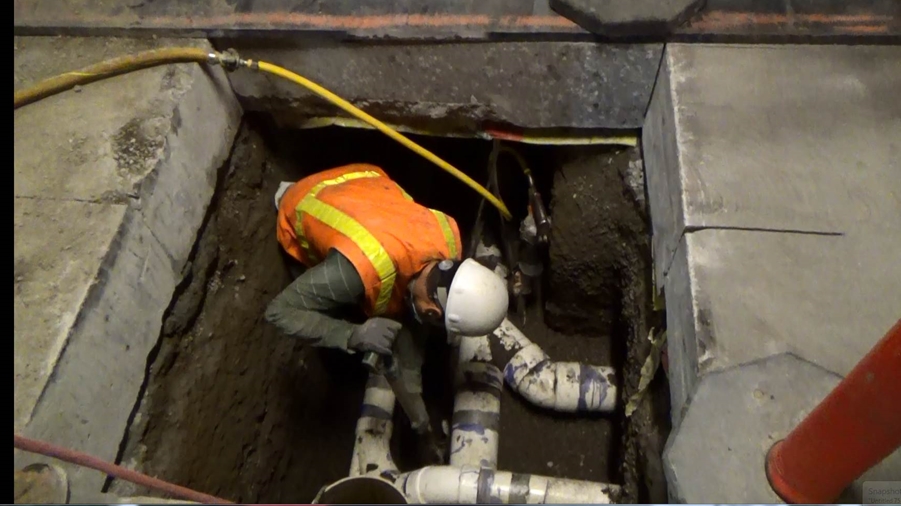

The excavation begins

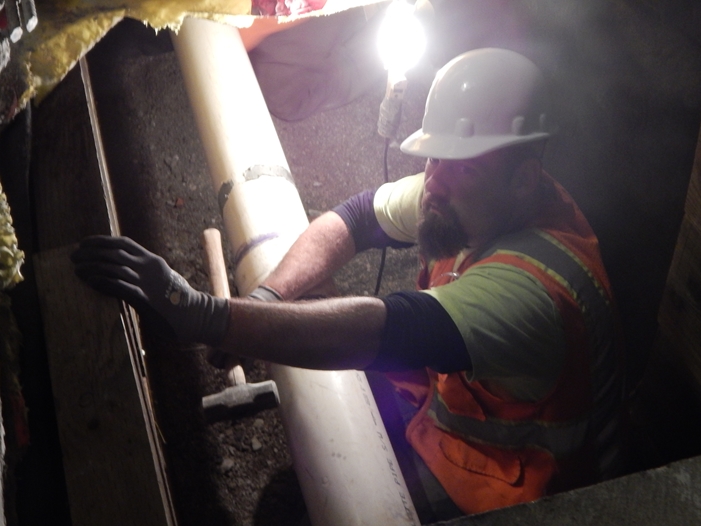

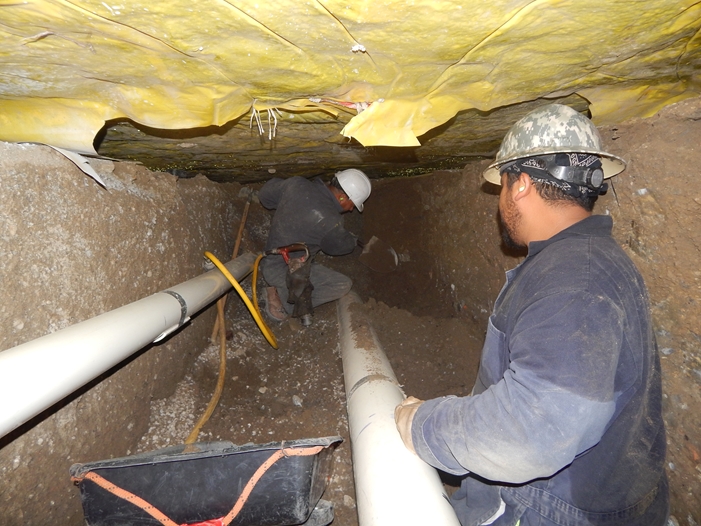

Hand excavation of the underground pipes

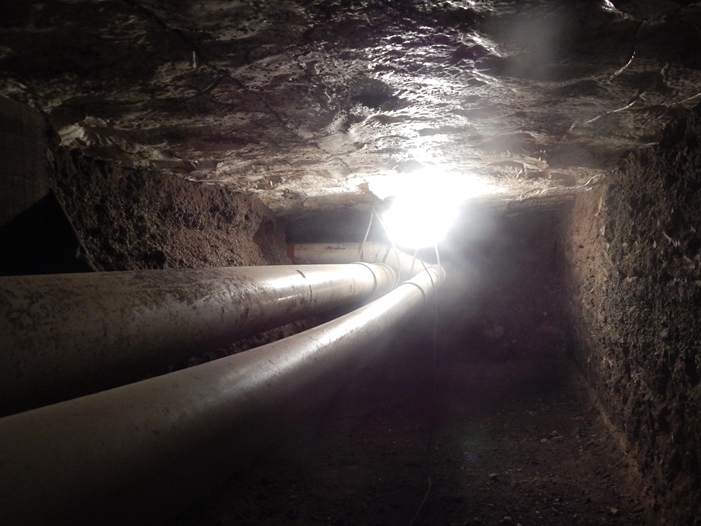

Tunnel created around the pipes

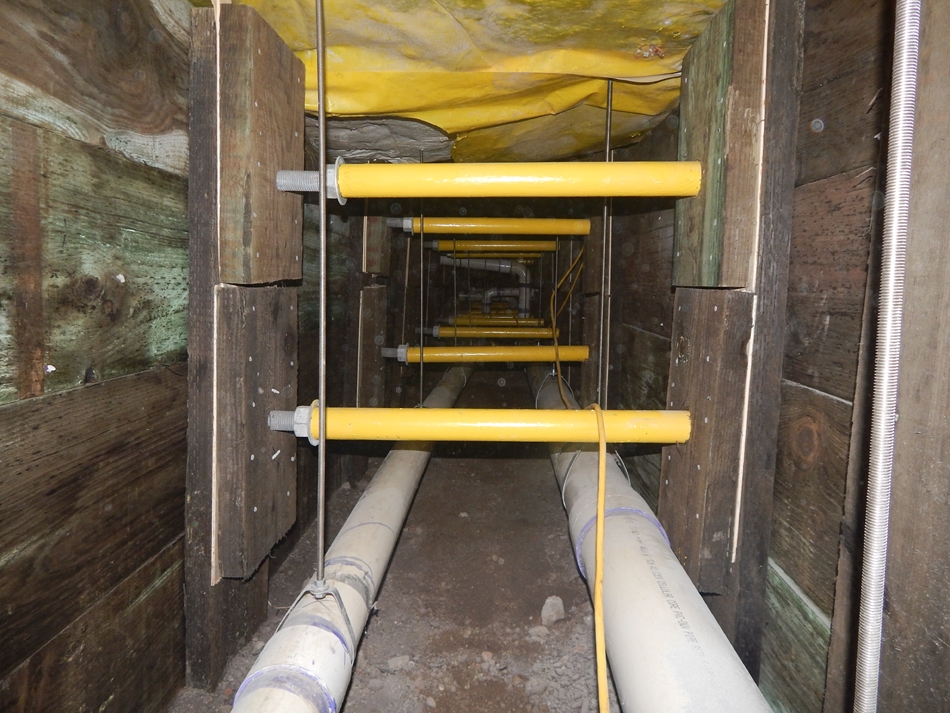

The walls are shored
The shoring process complete

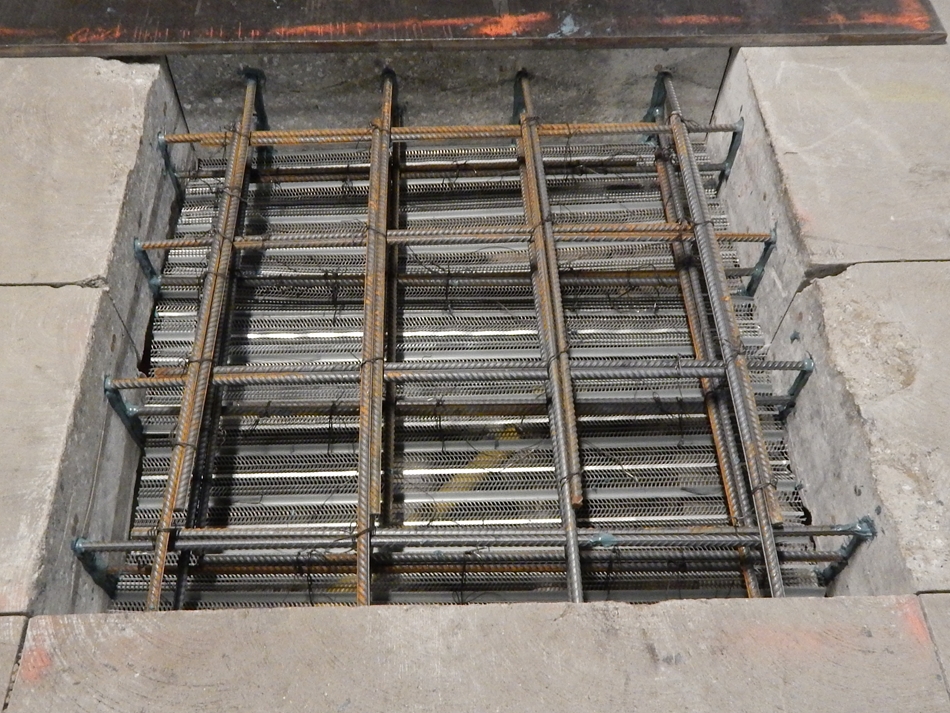

Preparing to fill the access holes with concrete

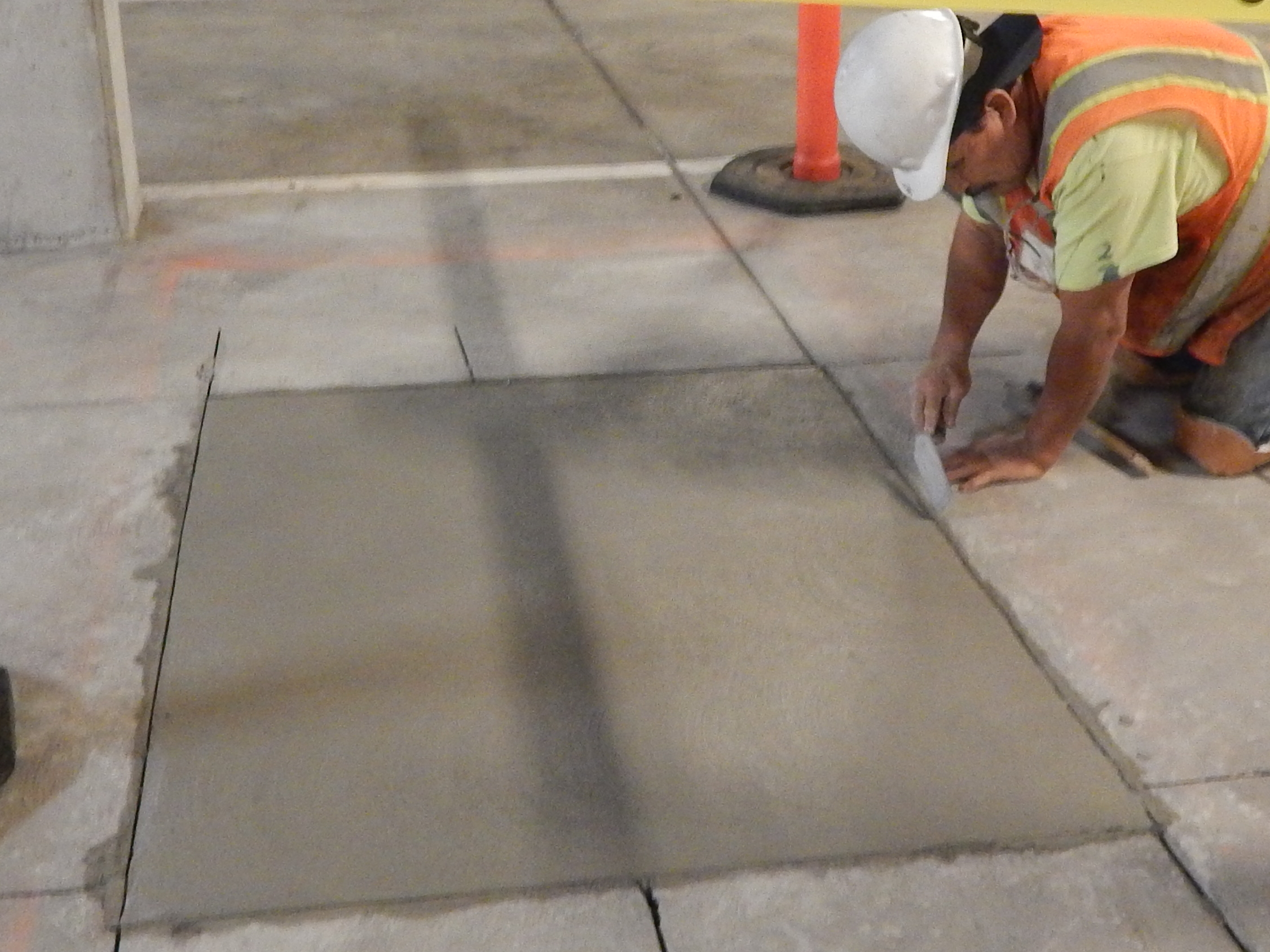

Hand finishing the concrete

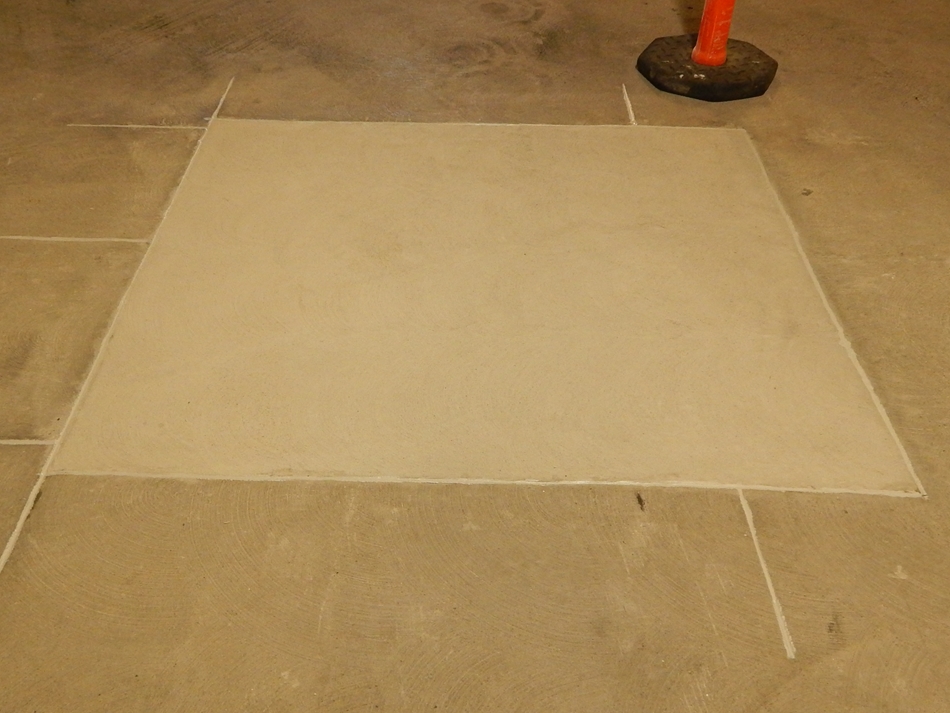

The access holes are sealed
