Soldier Pile and Concrete Panel Retaining Wall
newsimg Type: Recent Projects

Client: Concord, CA

Services: Soldier Pile and Concrete Panel Retaining Wall

SOLDIER PILE AND CONCRETE PANEL RETAINING WALL - CONCORD, CA

ESR was contacted to replace a failing retaining wall for a homeowners association in Concord.  The existing wall was a  concrete block wall on a cantilever footing.  The wall had cracked in several places and began rotating.  The replacement wall is a cast-in-place, reinforced, concrete panel retaining wall supported by deep soldier pile piers.

Project Duration:  20 days

Click to View Photos

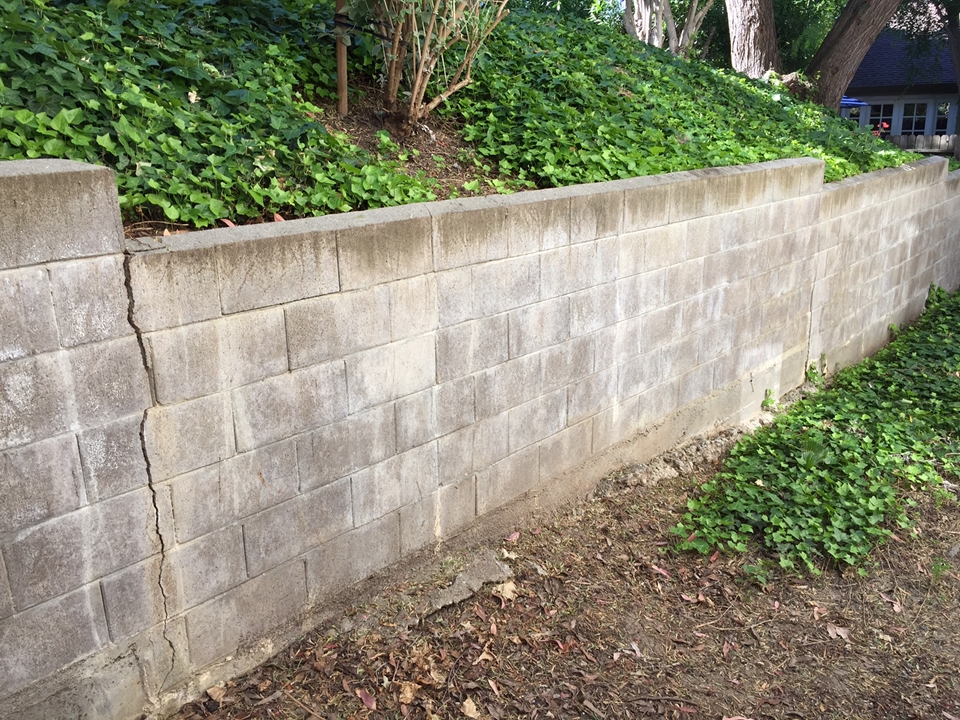

The retaining wall is starting to fail

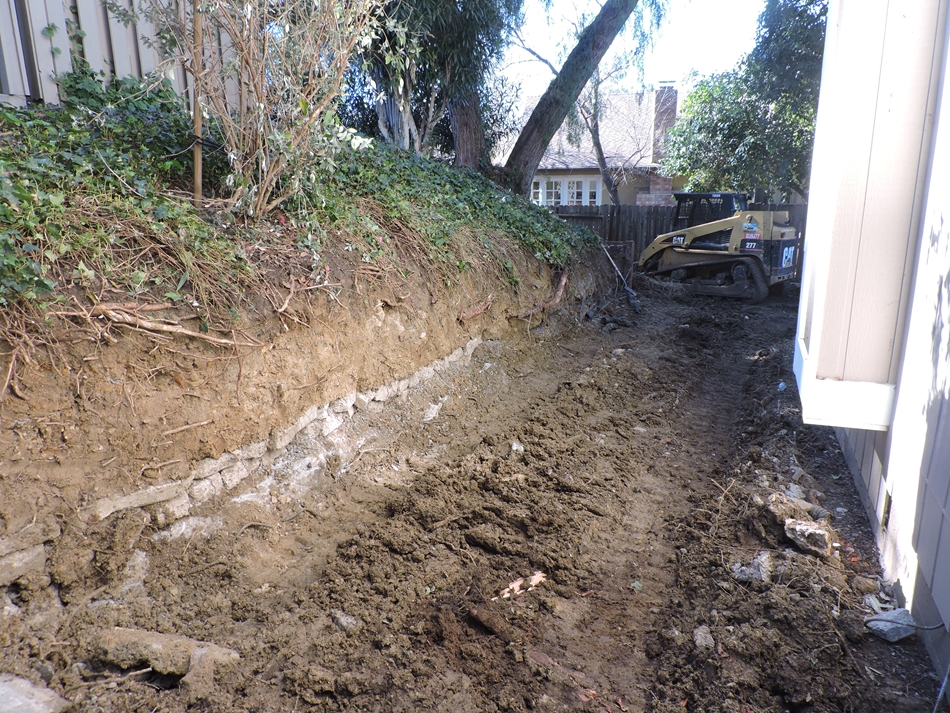

The old wall is removed

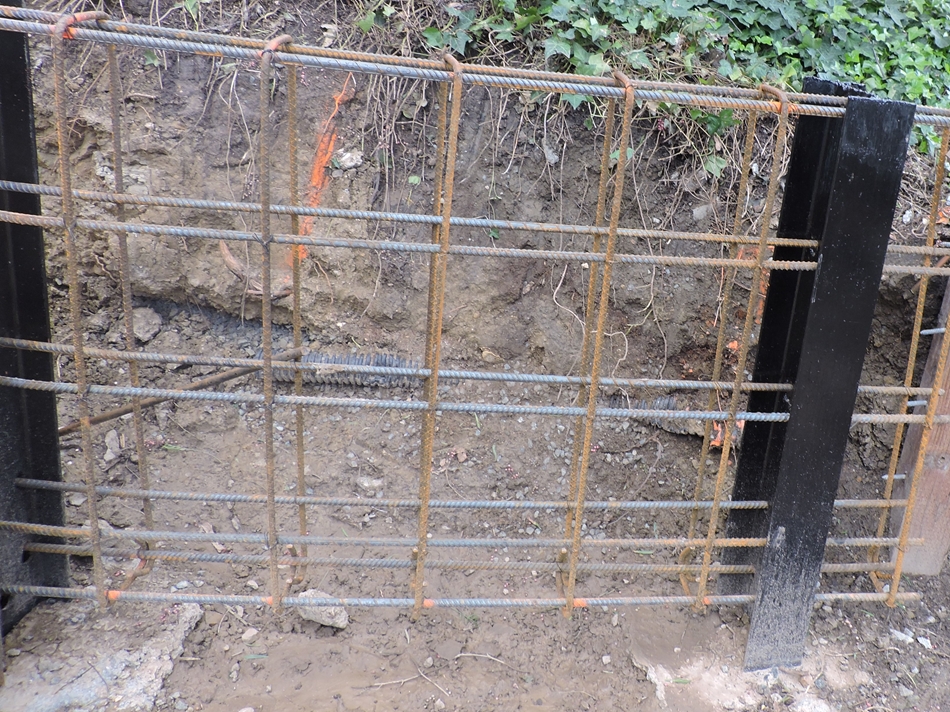

Steel I-beams and reinforcement are installed

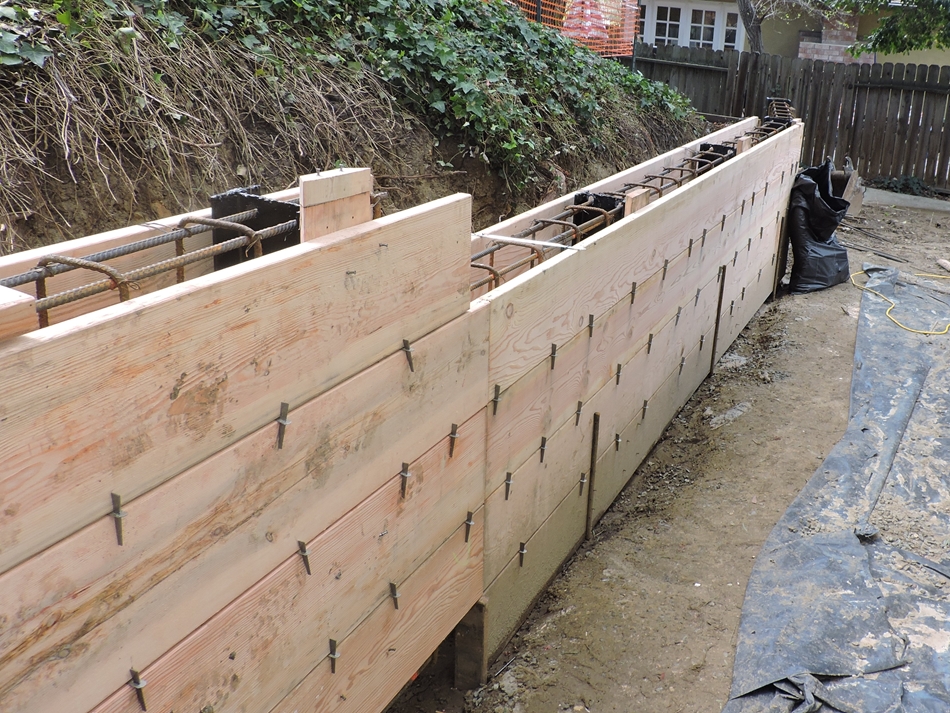

The forms are placed and ready for concrete

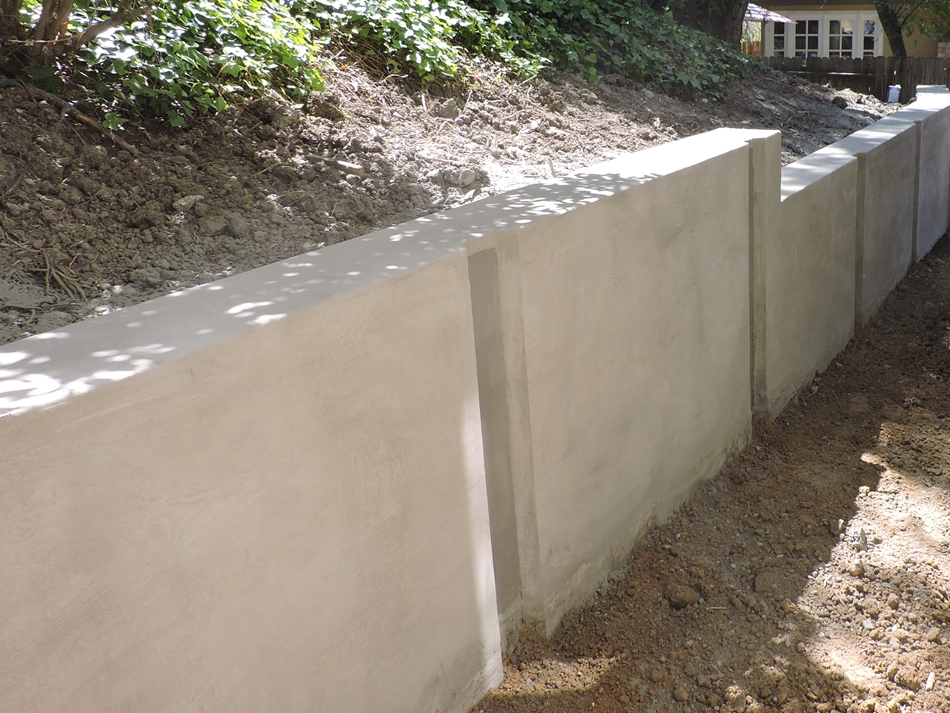

Completed Wall
